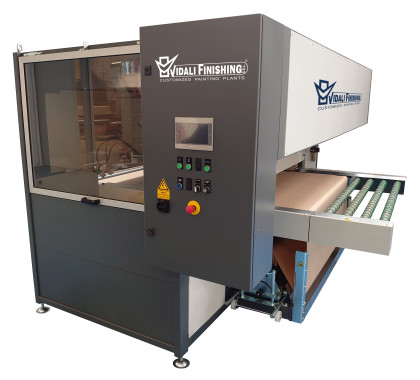

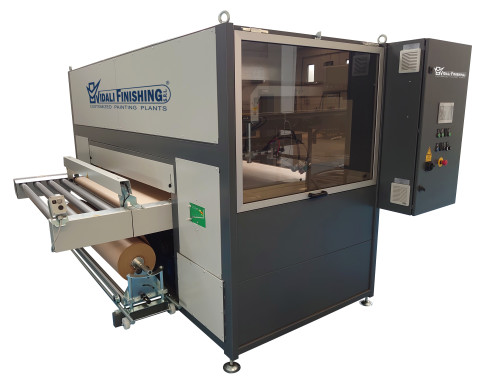

SPRAYLUX START

The SPRAYLUX START allows the painting of regular and/or shaped panels on moving transport,

by means of oscillating motion spray guns.

The machine is monolithic, and includes:

• 1 support transport and painting pieces with mixed tubular structure and welded and painted sheet metal profiles and special transport, with paper or disposable products support surface.

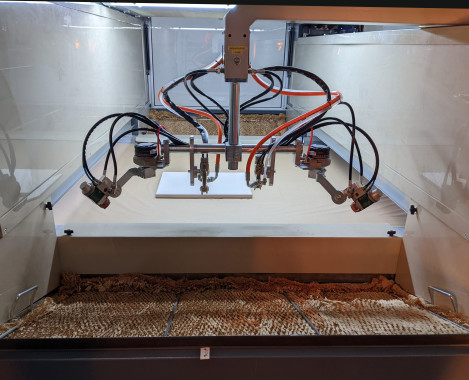

• 1 painting booth with welded and painted tubular structure, galvanised sheet metal internal panelling and one-arm reciprocator with movement on recirculating ball bearing guides, with toothed belt transmission.
• Attachments and supports for 2 guns.
• 1 dry painting fumes suction system.
• Lateral transport ducts with baskets for pre-filter and final filter.
• Fume expulsion electric fan.
• 1 air reintegration system inside the cabin.
• Hood with axial fan for air reintegration, and cabin ceiling filter.
• 1 electrical cabinet complete with control and protection devices, plc for machine operation and gun spraying, electrical cabinet.

Technical characteristics:

• Basic spray management electronics for max. 2 spray guns.
• Operation on the working profit compared to the transport centreline (the operator decides how much transport profit to paint).
• 1 paint circuit with high pressure pipes for each circuit, with nickel-plated/galvanised fittings.
• Predisposition for connection and assembly of 2 guns.
• Paper/plastic film conveyor belt width 1700.
